Delta 32
| AKA: | Delta32 | ||
|---|---|---|---|
| Related Models: | |||
| Type: | Sitdown | Country: | Japan |
| Company: | River Service | Year: | 2008 |
| Dimensions: | 875 (W) x 880 (D) x 1503/1610 with marquee (H) mm | ||
| Weight: | 115 kg | ||
| Wiring Default: | JAMMA + JVS | ||
| Current: | 110VAC | Power: | 220W |
| Monitor: | 32 in (main) + 20.1 in (top) widescreen TFT LCD, 15/24/31 kHz | ||
| Rotatable: | Yes (no rotate mechanism) | ||

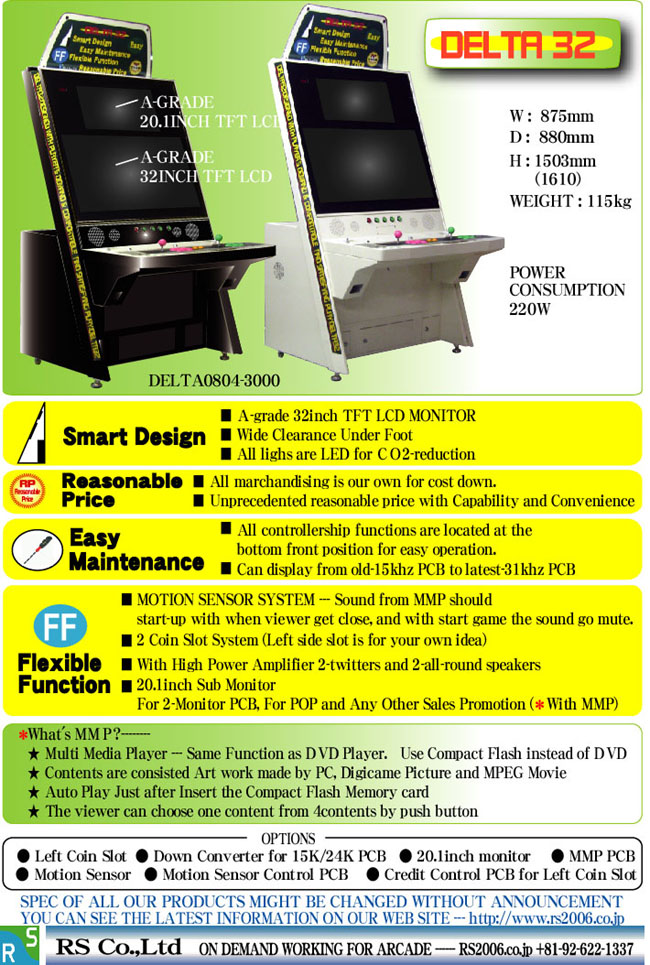

| Downloads: | Delta 32 Manual English Delta 32 Wiring(1) Delta 32 Wiring(2) Flyer Flyer2 | ||
| Artwork: | |||
Description:

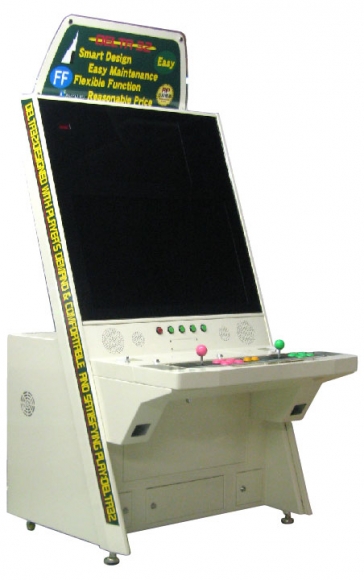

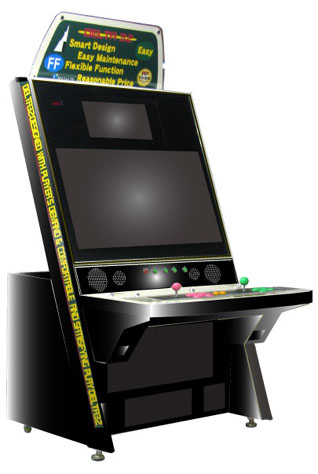

The Delta 32's main features are the optional dual-monitor setup, charge card pay system (no coins required), and motion sensor attract sound on/off. It is available in black and white. Uses Sega standard control panels (Astro) for easy and low cost replacement. Video Delta 32
There are no reviews for this cabinet
Owner Registry: Arcade UFO
Links:
Tags:
Credits and Sources: oxtsu, Amusement Journal
